Log Saw / Band Saw
TB-JRT100 Orbital Log Saw
Heavy-duty orbital cutting system for JRT/Maxi Rolls. Delivers 100 cuts/min with a mirror-smooth finish and auto-sharpening, handling diameters up to 300mm.
View Details

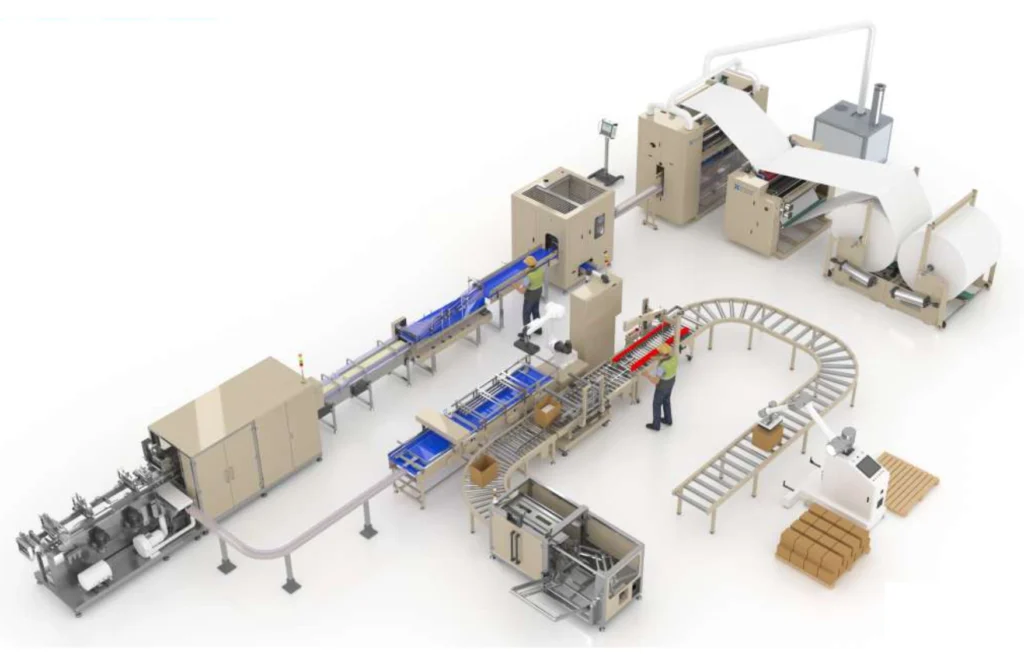

End-to-end automation from jumbo roll to palletized cases. Modular design allows configuration with or without embossing and gluing units. Compatible with Z/N fold, W fold, and multi-fold geometries for diverse market requirements.
Equipment Technical Parameters Table
| Machine Model | Automatic Film Wrapping Line |
| Folding Type | Z/N Fold (Standard), W Fold, 5-Fold, 6-Fold (Optional) |
| Folding Speed | 150 - 230 m/min (Z/N Fold) / 0 - 180 m/min (N-Fold mode) |
| Log Saw Speed | 150 - 350 cuts/min (High-speed rotary cutting) |
| Wrapping Speed | 30 - 80 packs/min (depending on product specifications) |
| Paper Width | 690mm - 2850mm (Adjustable) |
| Paper Grammage | 18-25g/m² (Double Layer) / 35-48g/m² (Single Layer) |
| Jumbo Roll Diameter | Φ1500mm - Φ2200mm (Max) |
| Core Diameter | 3 inch - 14 inch (76mm - 350mm) |
| Folding Method | Vacuum Absorption Fold with Servo Control |
| Counting Method | Servo Count (Precision sheet counting) |
| Control System | Siemens / Inovance Motion Control System |
| Power Supply | AC380V 50Hz (Main Motor: 5.5-7.5KW / Vacuum Pump: 15-90KW) |
| Air Pressure | 0.5 Mpa (Required for pneumatic systems) |
| Packaging Type | Automatic Film Wrapping (PE, AP, Composite Film) |

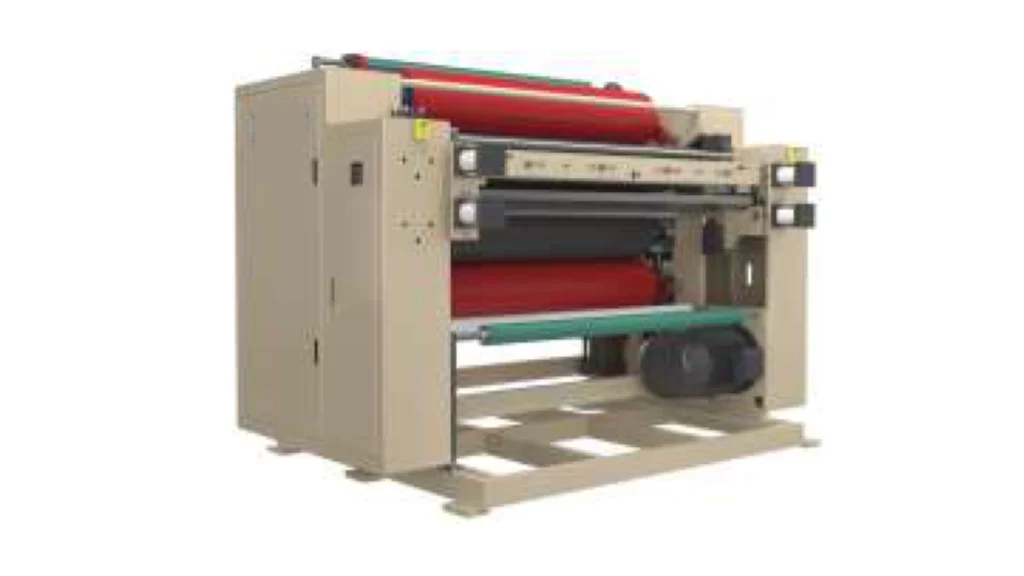

High-efficiency vacuum suction forms precise Z-fold and N-fold patterns at speeds up to 230 m/min. Integrated servo motors ensure ±1mm folding accuracy with 100% interfold consistency for reliable pop-up dispensing in towel dispensers. Supports W fold, 5-fold and 6-fold configurations for diverse market requirements.

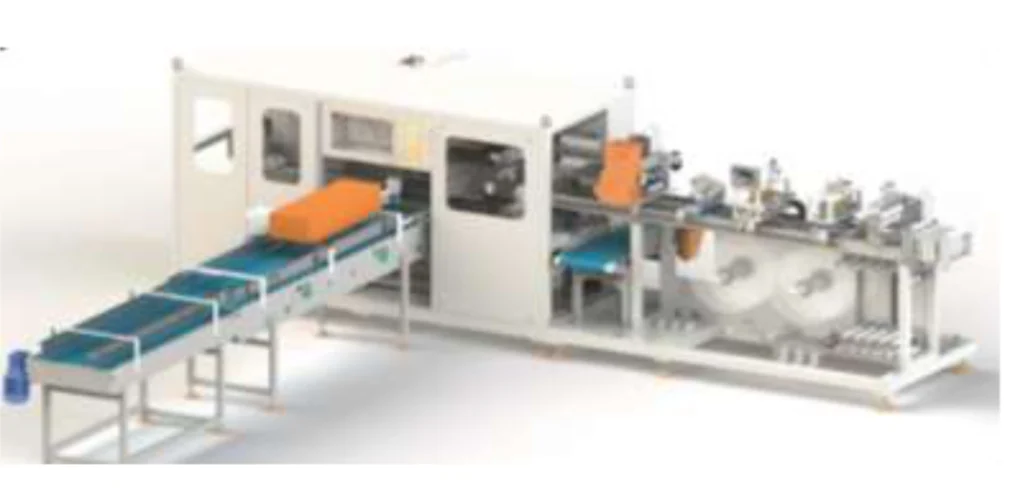

High-speed packaging unit processes 30-80 packs per minute using PE, AP, or composite films with M-type bag formation. Features precision temperature control for airtight sealing and automatic pack counting integration with downstream palletizing systems.

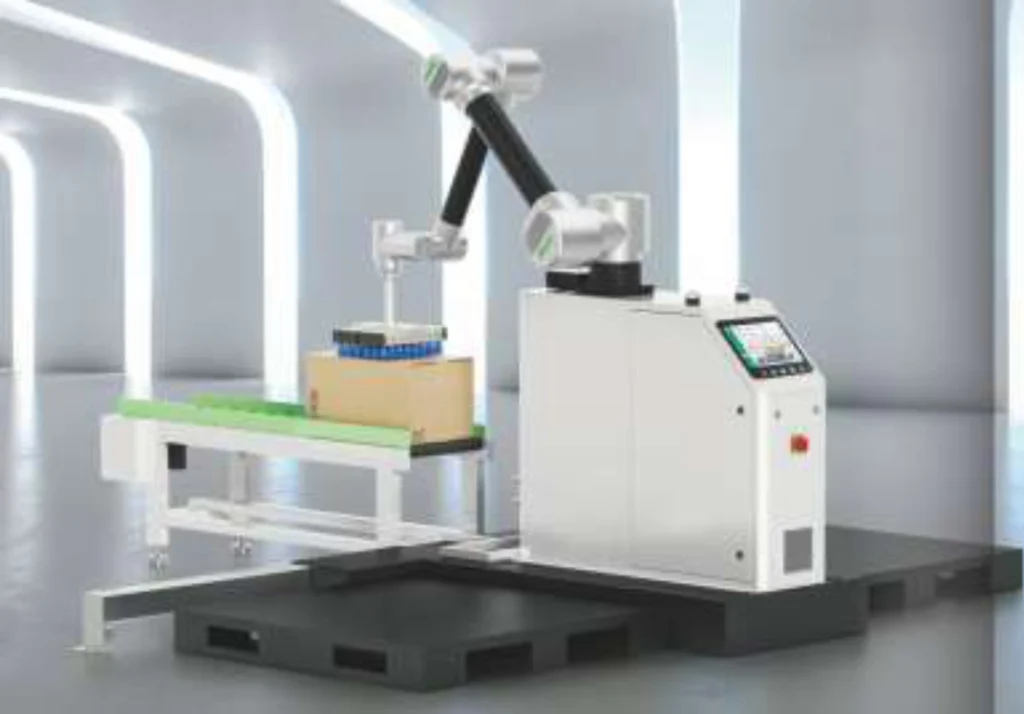

Collaborative robot palletizer with IP54 protection rating. Achieves <9 pieces per minute palletizing speed with ±0.04mm repeat positioning accuracy. Maximum palletizing height 2100mm. Features TCP/IP communication protocol and operates in temperature range 0-55°C. Maximum power dissipation 2.6KW with single phase 220V/50Hz power supply.
The Automatic Line includes robotic palletizing, automatic case erection, and complete conveyor integration for 24/7 unmanned operation. The Semi-Automatic version (Page 7 of specifications) requires manual feeding at the packaging stage while maintaining automatic folding and cutting. Choose Automatic for high-volume continuous production; choose Semi-Automatic for lower investment with flexible labor integration.
Yes. The line supports both configurations: “Including gluing, excluding embossing” or configurations with both units installed. The Steel-to-Steel Embossing Unit uses nest-to-nest technology for texture patterns, while the Lamination System applies point-to-point adhesive for multi-ply luxury towels. Both operate at full line speed (150-230 m/min) without speed reduction.
The Fully Servo Z/N Folding Machine operates at 150-230 m/min. The High-Speed Log Saw cuts at 150-350 cuts/min. The Film Wrapping Machine packages at 30-80 packs/min depending on pack dimensions (L150-350mm × W100-210mm × H70-110mm). Robot palletizing handles <9 cases per minute with ±0.04mm precision. Actual throughput depends on your fold type (Z/N vs W-fold) and sheet count per pack.
Standard configurations include Z/N fold (most common for dispensers) and W fold. Optional configurations support 5-fold and 6-fold for specialized markets. All fold types use vacuum absorption technology with servo counting for precision interfolding. Changeover between fold types requires mechanical adjustment and recipe changes in the Siemens/Inovance control system.
Power: AC380V 50Hz three-phase. Main motor: 5.5-7.5KW. Vacuum pump: 15-90KW (depending on paper width 690-2850mm). Compressed air: 0.5 Mpa constant pressure. Minimum plant height: 3.2 meters for the robot palletizer (2100mm stacking height + safety clearance). The robot operates on single-phase 220V/50Hz.
