Compact single-head configuration delivering 1/4 fold and 1/8 fold napkin geometries with integrated automatic single-pack packaging. Features servo-controlled folding at up to 180 m/min with optional embossing or lamination finishing, plus single or two-color printing capabilities for diverse hospitality and retail markets.
Equipment Technical Parameters Table
| Machine Model | Single-Head Automatic Napkin Line |
| Configuration | Single-Head (1 production unit) |
| Folding Types | 1/4 Fold (Standard) / 1/8 Fold (Optional) |
| Folding Speed | N-Fold: 0-180 m/min / 4-6 Fold: 0-130 m/min |
| Folding Method | Vacuum Absorption Fold with Servo Control |
| Printing Options | Single-Color or Two-Color |
| Finishing Options | Embossing Unit OR Lamination Unit (Configurable) |
| Packaging Type | Automatic Single-Pack Wrapping |
| Paper Width | 690mm - 2850mm |
| Paper Grammage | 18-25g/m² (Double Layer) / 35-48g/m² (Single Layer) |
| Jumbo Roll Diameter | 1500mm - 2200mm |
| Core Diameter | 3 inch - 14 inch (76mm - 350mm) |
| Line Dimensions (1/4 Fold) | 15392mm × 7530mm (L×W) - With Embossing |

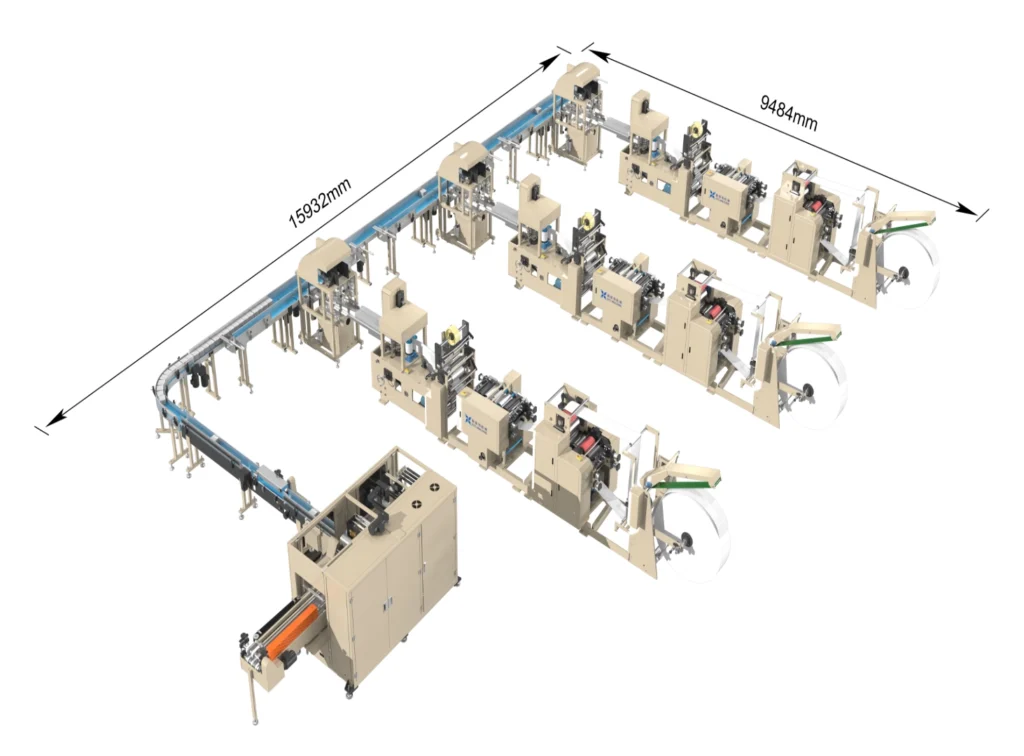

| Line Dimensions (1/8 Fold) | 15932mm × 9484mm (L×W) - With Lamination |
| Counting Method | Servo Count |
| Control System | Siemens / Inovance Motion Control |
| Power Supply | AC380V 50Hz (Main: 5.5-7.5KW / Vacuum: 15-90KW) |
| Air Pressure | 0.5 Mpa |
| Paper Feed System | 1-2 Paper Feed Shelf with Buffer Cylinder Control |

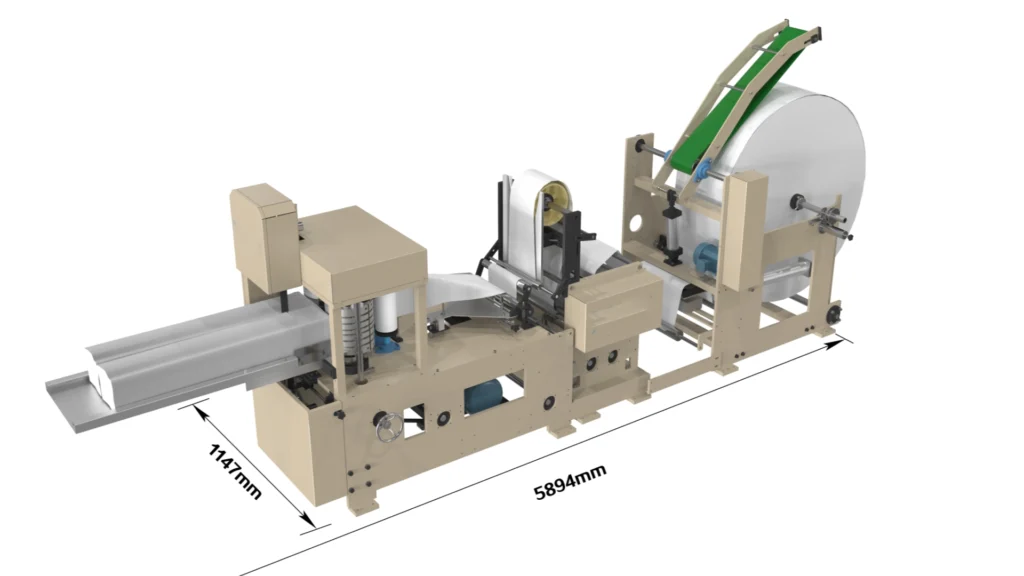

High-precision vacuum absorption system forms 1/4 fold and 1/8 fold geometries with servo-controlled accuracy. Achieves speeds up to 180 m/min for N-fold patterns and 130 m/min for complex 4-6 fold configurations. Ensures consistent interfold positioning for reliable dispensing in standard napkin holders and dispensers.
The Single-Head configuration features one production unit capable of 1/4 fold or 1/8 fold geometries, with line dimensions of approximately 15.4m x 7.5-9.5m depending on configuration. The Twin-Head version features two parallel production units for double output capacity within a similar footprint (15.4m x 9.1m). Choose Single-Head for standard restaurant and hotel production; choose Twin-Head for high-volume export or large-scale manufacturing requiring maximum throughput.
1/4 fold is the standard format for restaurant and hospitality napkins, creating a compact square when folded. 1/8 fold creates a smaller, more compact naplet format ideal for beverage service, compact dispensers, or markets requiring minimal storage space. The 1/8 fold option is only available on the Single-Head configuration (not on Twin-Head) and requires specific line dimensions of 15,932mm x 9,484mm with lamination unit.
No. The line is configured with either an Embossing Unit OR a Lamination Unit, not both simultaneously. The Embossing Unit creates texture patterns using steel-to-steel nest-to-steel technology. The Lamination Unit applies point-to-point adhesive for multi-ply construction. You must choose one finishing option at order configuration, though both deliver premium quality suitable for branded hospitality napkins.
The servo-controlled folding system achieves 0-180 m/min for N-fold patterns and 0-130 m/min for complex 4-6 fold configurations. Speed varies by fold type: 1/4 fold operates at higher speeds, while 1/8 fold requires more complex handling. The automatic single-pack packaging module synchronizes with folding speed to maintain continuous flow without bottlenecks.
The is a complete production line including automatic single-pack packaging integrated directly from the factory. This distinguishes it from standalone folding machines which only fold and require separate manual or semi-automatic packaging equipment. The line delivers finished consumer-ready packs automatically from jumbo roll input.
Discover our complete range of tissue converting solutions
Log Saw / Band Saw
Heavy-duty orbital cutting system for JRT/Maxi Rolls. Delivers 100 cuts/min with a mirror-smooth finish and auto-sharpening, handling diameters up to 300mm.
View Details
Non-Stop Rewinders
High-performance non-stop line running at 500 m/min. Features Siemens & Schneider Electric core for zero-latency control and heavy-duty support for 3,000kg jumbo rolls.
View Details

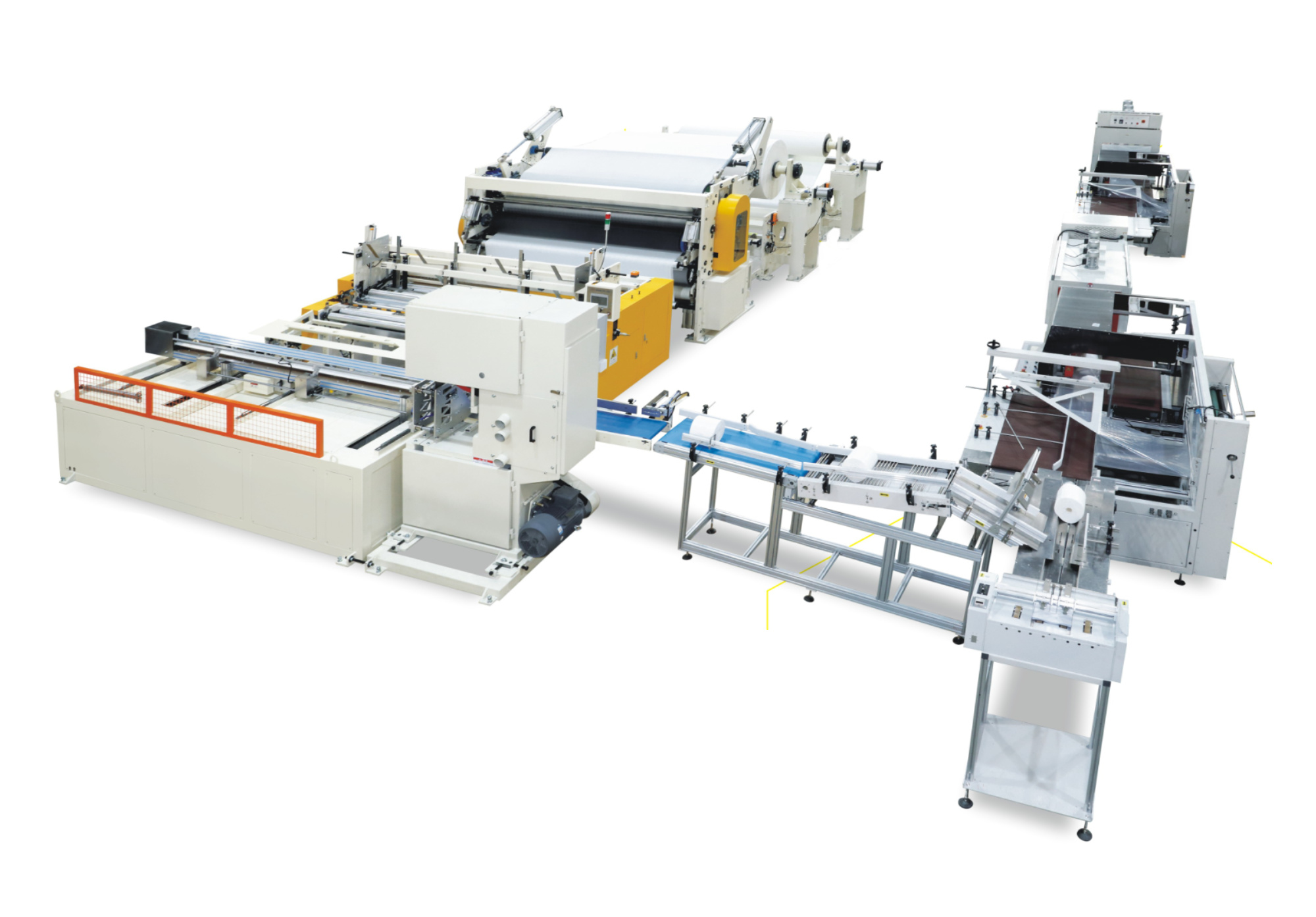

Start-Stop Rewinders
