Industry benchmark for reliability
Engineered for zero-vibration operation and precise winding at high speeds of 1000 m/min
Minimizing downtime with smart automation and heavy-duty components for non-stop converting.
Reliable high-speed processing for volume production.

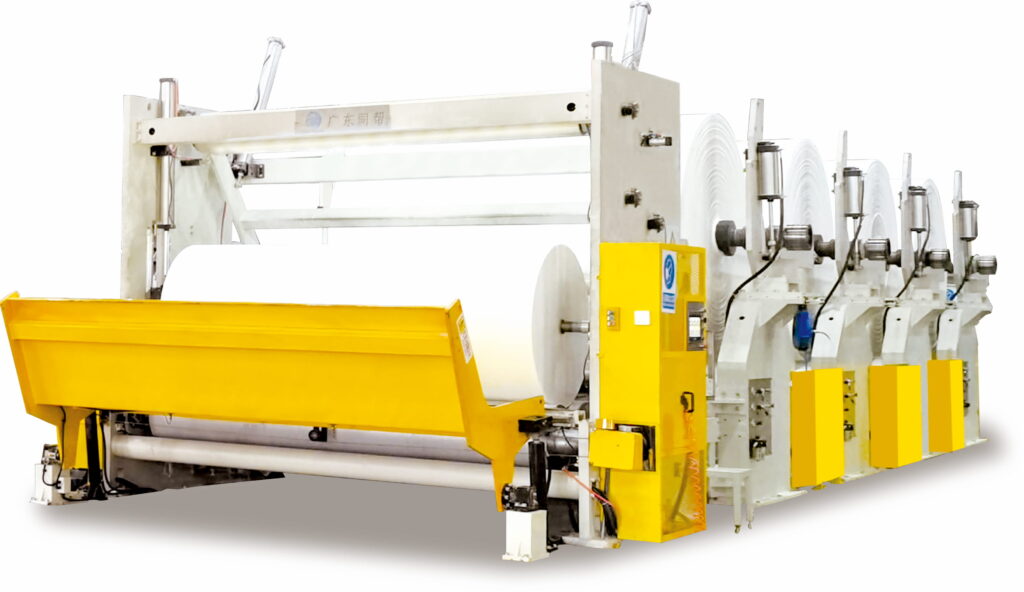

| Machine Model | TB-FQA1000 (FQ Series) |
| Working Speed | 1000 m/min |
| Width of Raw Paper | 2000-4200 mm |
| Dia. of Finished Roll | Φ1800 mm (Standard) / Other sizes customizable |
| Dia. of Parent Roll | Φ 2000 / 2500 / 3000 mm |
| Slitting Width | Min 80mm - Max to raw paper width |
| Rewinding System | Pneumatic synchronous winding |
| Slitting System | Imported slitting knives (Shear/Razor) |
| Discharge System | Auto roll change + Hydraulic discharge |
| Control System | Siemens Motion Control System |

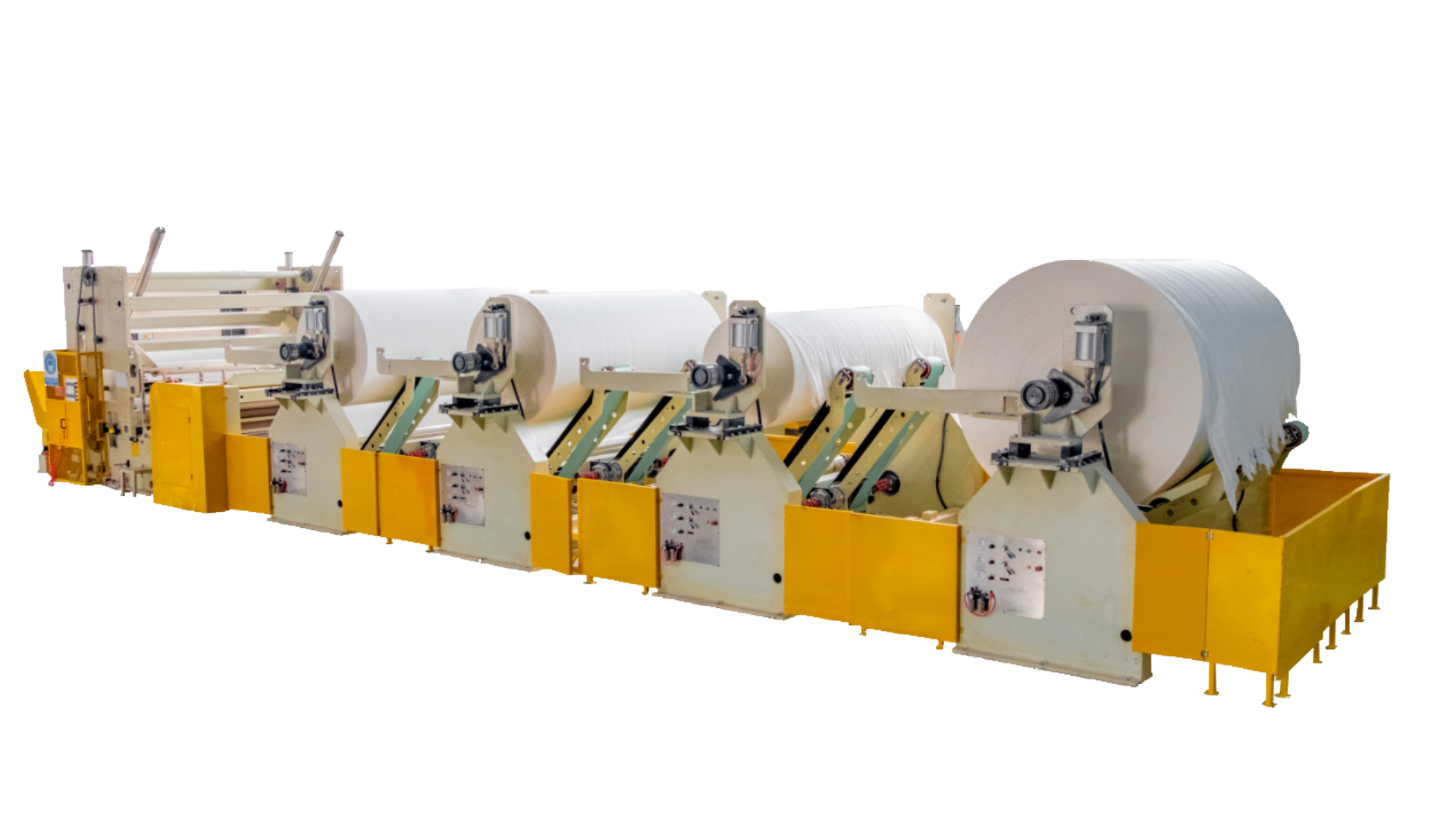

| Unwind Stand | 1-6 Backstands (Customizable) |
| Drive Power | Individual Inverter Control (~100KW) |
| Optional Configuration |
Calendering Unit: Steel to Steel Electric Hoist: 2, 3, 5 Tons Special Function: Double-side cream application |

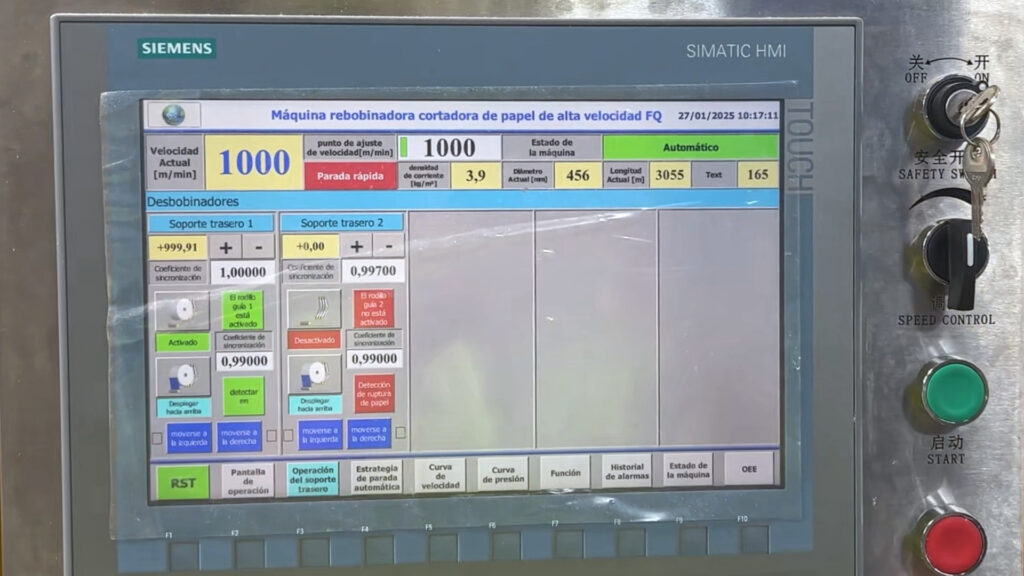

Features a native SIEMENS Simatic touch panel with real-time diagnostics. Operators can manage tension recipes, visualize speed curves (up to 1000+ m/min), and control individual servo drives with zero latency.

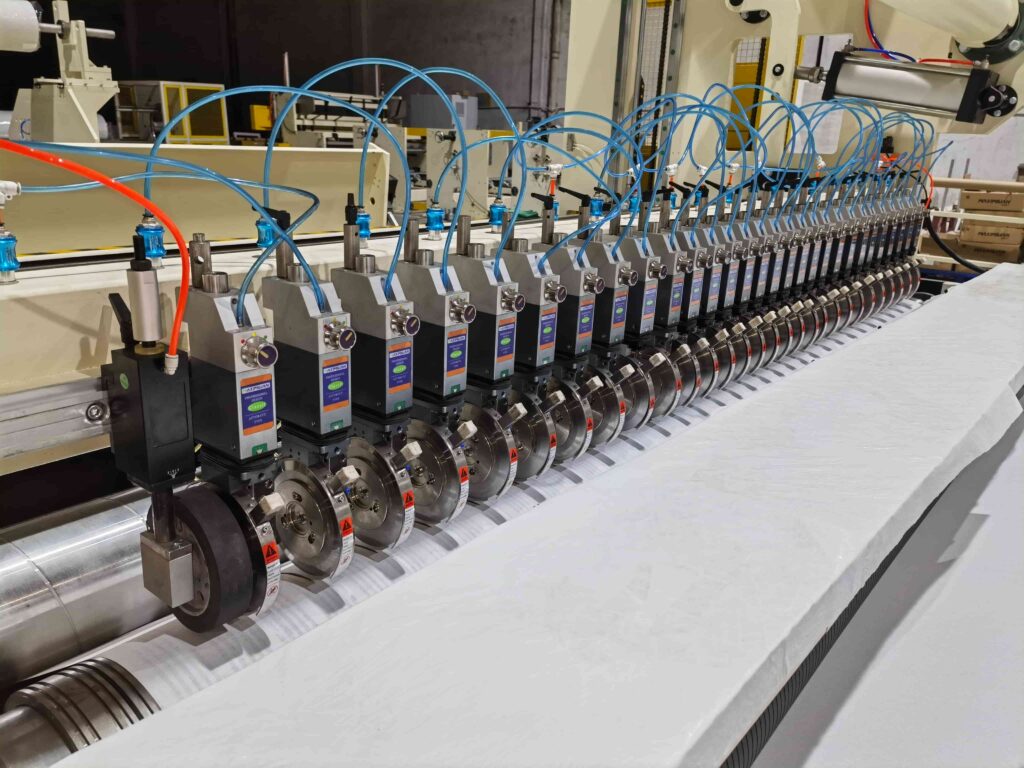

Features a heavy-duty knife assembly capable of minimum slit widths down to 50mm. The pneumatic locking system ensures rigid stability, eliminating blade vibration even when running maximum knife capacity.

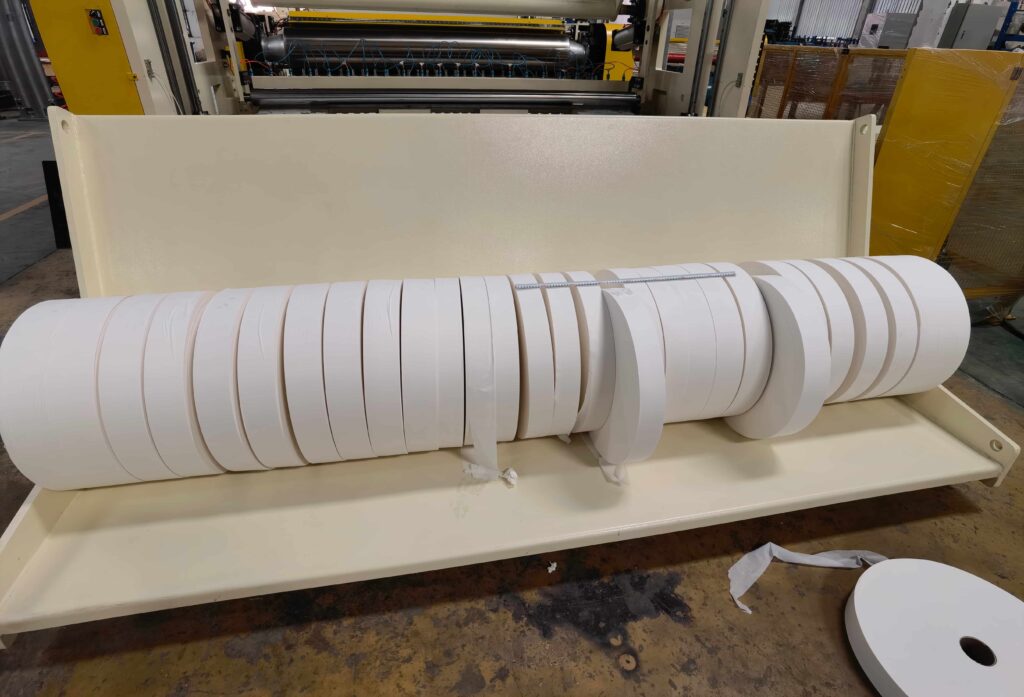

The proof is in the winding. Our advanced spreader roll technology guarantees distinct roll separation, preventing interleaving even on narrow cuts. The hydraulic discharge table gently lowers heavy sets to floor level for safety.
Get a Technical Proposal & Layout within 24h.
