Log Saw / Band Saw
TB-JRT100 Orbital Log Saw
Heavy-duty orbital cutting system for JRT/Maxi Rolls. Delivers 100 cuts/min with a mirror-smooth finish and auto-sharpening, handling diameters up to 300mm.
View Details
The industry standard for reliability. Engineered for vibration-free stability and precision winding at 1300 m/min.
Minimizing downtime with smart automation and heavy-duty components for non-stop converting.

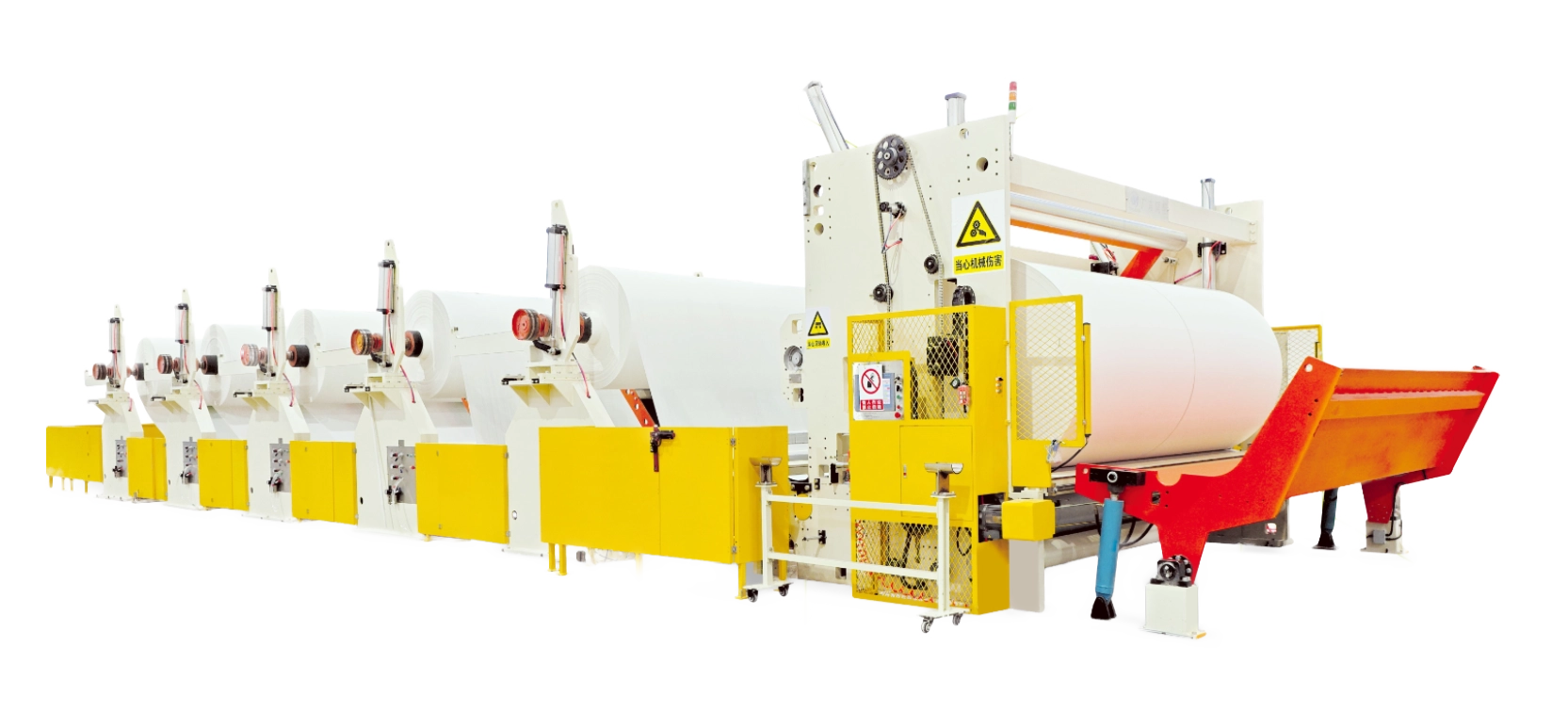

| Machine Model | TB-FQA1300 (FQ High Speed Series) |
| Width of Raw Paper | 2000-4200 mm |
| Production Speed | 1300 m/min |
| Dia. of Finished Roll | Φ1800 mm (Standard) / Other sizes customizable |
| Dia. of Parent Roll | Φ 2000 / 2500 / 3000 mm |
| Slitting Width | Min 80mm - Max to raw paper width |
| Rewinding System | Pneumatic synchronous winding |
| Slitting System | Imported slitting knives (Shear/Razor) |
| Roll Discharger | Auto roll change + Hydraulic discharge |
| Programmable Controller | Motion Control System (Siemens) |
| Stop Mode | Stop by diameter or paper length |
| Unwind Stand | 1-6 Stands (Customizable) |
| Drive Power | Individual inverter speed regulation |
| Optional Configuration |
Calendering Unit: Steel-to-steel rollers Electric Hoist: 2, 3, 5 Tons Lotion Applicator: Double-side coating |

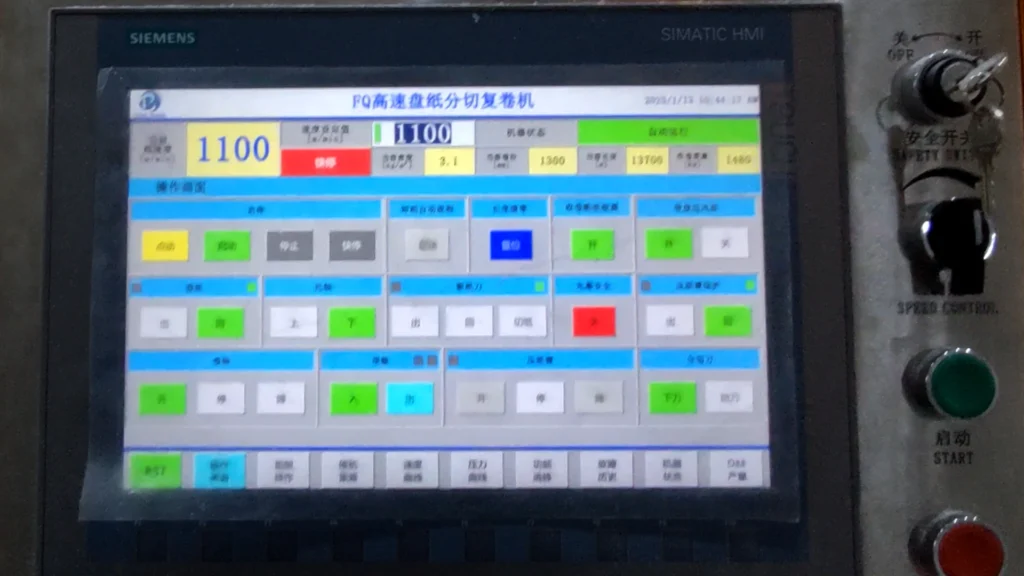

Features a native SIEMENS Simatic touch panel with real-time diagnostics and tension visualization. The user-centric interface allows operators to manage recipe presets, monitor speed curves, and synchronize the entire line with zero-latency servo precision.

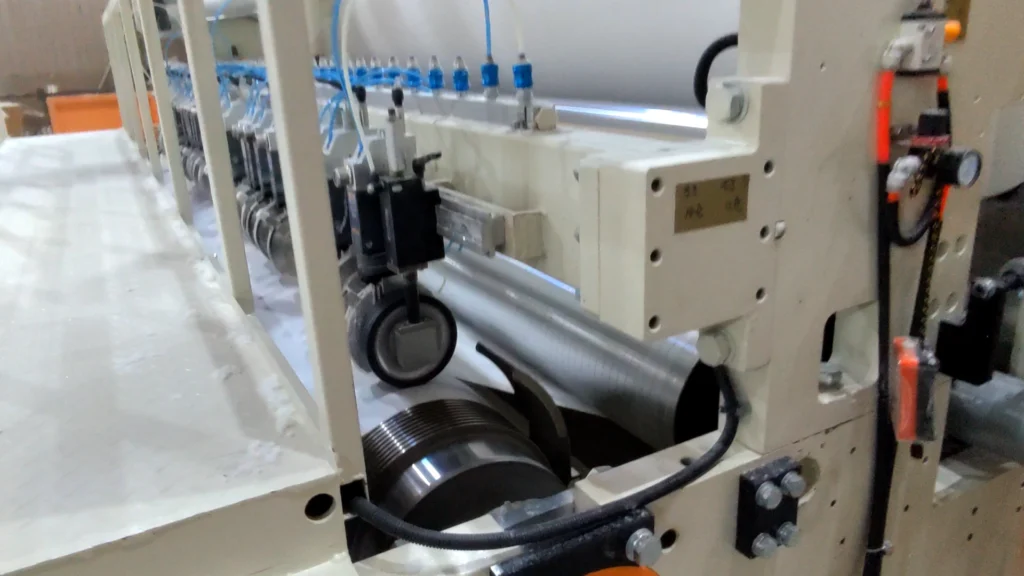

Equipped with heavy-duty pneumatic knife holders for vibration-free stability. The tangential shear system ensures dust-free edges even on high-GSM Kraft paper or delicate tissue, while the integrated bowed roller guarantees perfect web separation before rewinding.

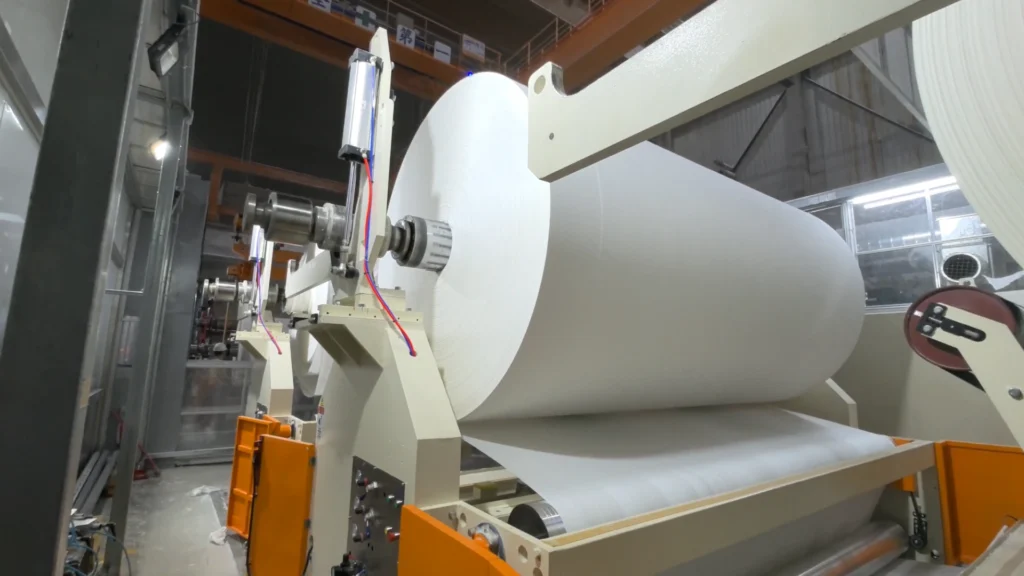

Engineered for heavy workloads. The floor pick-up system uses powerful hydraulic arms to lift Jumbo Rolls up to 1500mm diameter directly from the floor, eliminating the need for overhead cranes and reducing changeover time by 40%.
Get a Technical Proposal & Layout within 24h.
