Engineered for perfect edge slitting and superior rewinding at high speeds of 1500 m/min
Intelligent automation and heavy-duty component configuration minimize downtime for uninterrupted continuous production
Minimizing downtime with smart automation and heavy-duty components for non-stop converting.
Siemens S7 PLC with closed-loop load cell feedback for constant web tension.
Flexible cutting modules adaptable to tissue grades and GSM requirements.
Optional automated knife setup for rapid format changes (< 2 mins).
Perfect density and structure for downstream converting efficiency.

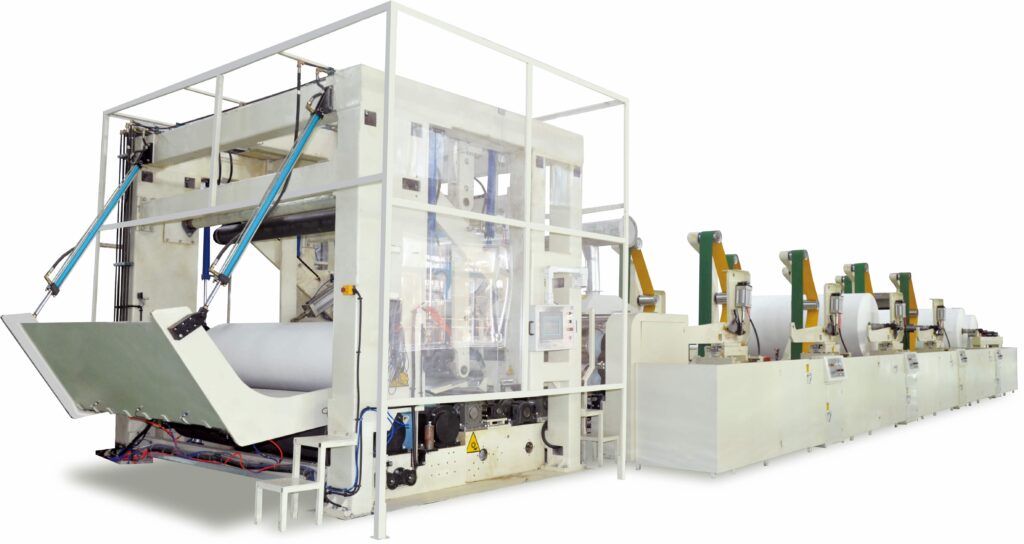

High-performance specifications for the SR1500 model.
| Machine Model | TB-SR1500 (FQ High Speed Series) |
| Production Speed | 1500 m/min |
| Width of Raw Paper | 2600 - 5700 mm |
| Dia. of Finished Roll | Φ1800 mm (Other sizes customizable) |
| Dia. of Parent Roll | Φ 2000 / 2500 / 3000 mm |
| Slitting Width | Min 200mm - Max to Jumbo Roll width |
| Rewinding System | Pneumatic synchronous winding (Surface rewinding) |
| Slitting System | Imported slitting knives |
| Automation Functions | Auto roll change + Hydraulic discharge |
| Control System | Siemens Motion Control System + Permanent Magnet Synchronous Servo Motor Drive |
| Unwind Stand | 1-6 Backstands (Customizable) |
| Optional Configuration | Calendering Unit: Steel-to-Steel Rollers |
Features a native SIEMENS Simatic touch panel with real-time diagnostics. Operators can manage tension recipes, visualize speed curves (up to 1000+ m/min), and control individual servo drives with zero latency.

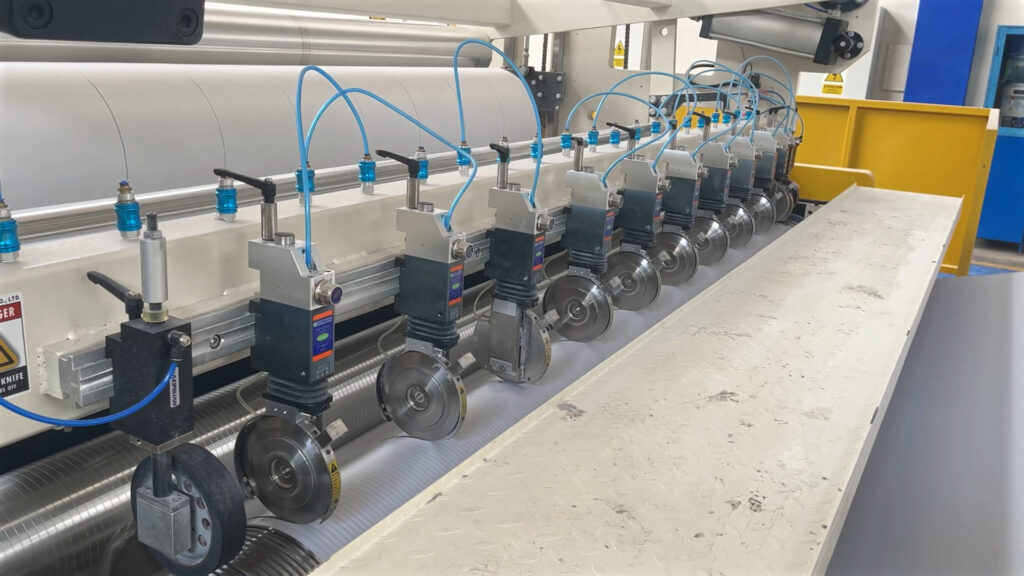

Equipped with heavy-duty pneumatic knife holders for vibration-free cutting. The tangential shear system ensures dust-free edges even on high-GSM Kraft paper, with rapid positioning setup.

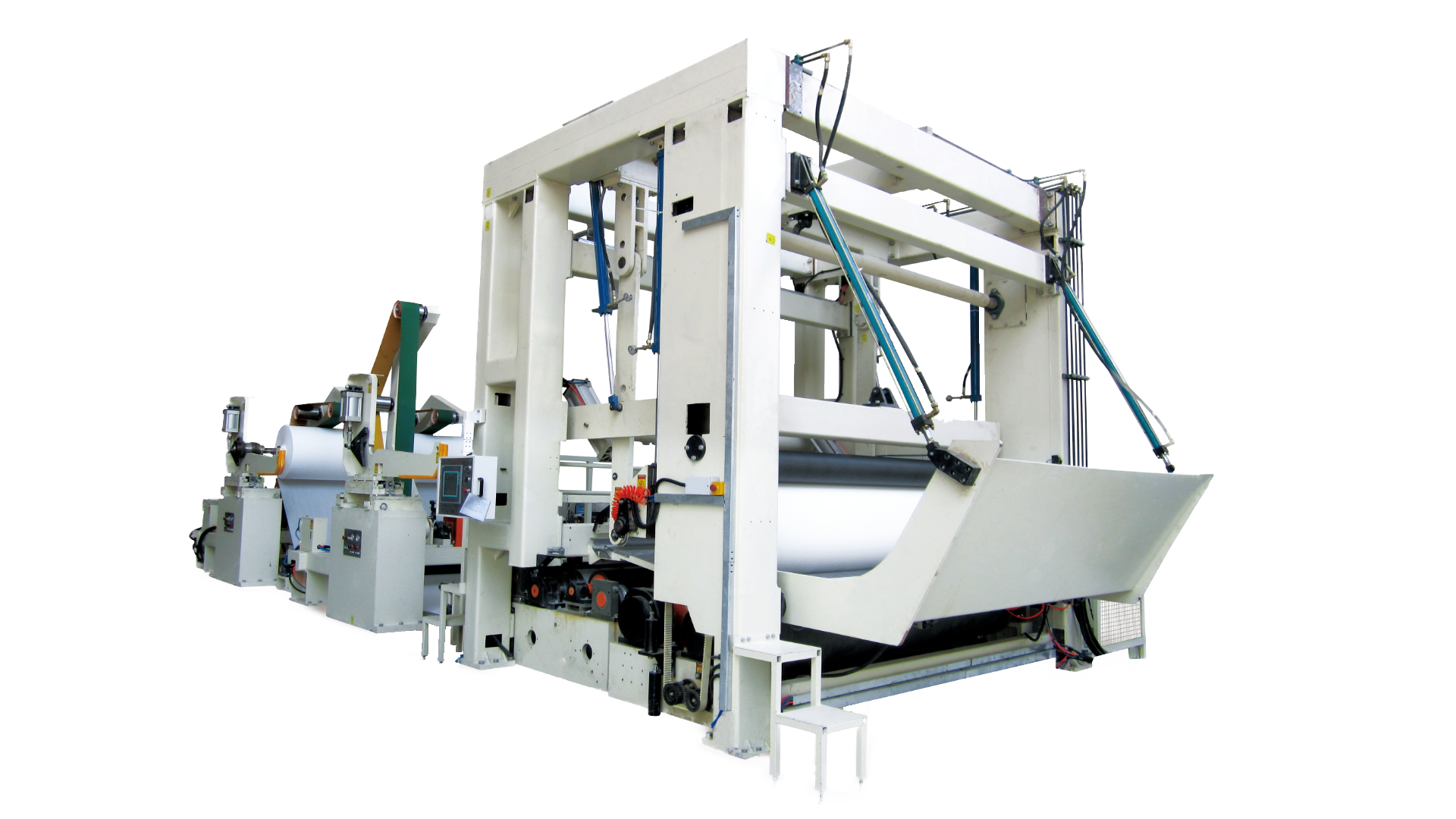

Engineered to handle jumbo parent rolls up to 2500mm diameter. The shaftless floor pick-up system and hydraulic unloading arms streamline the workflow, minimizing downtime between roll changes.
Get a Technical Proposal & Layout within 24h.
