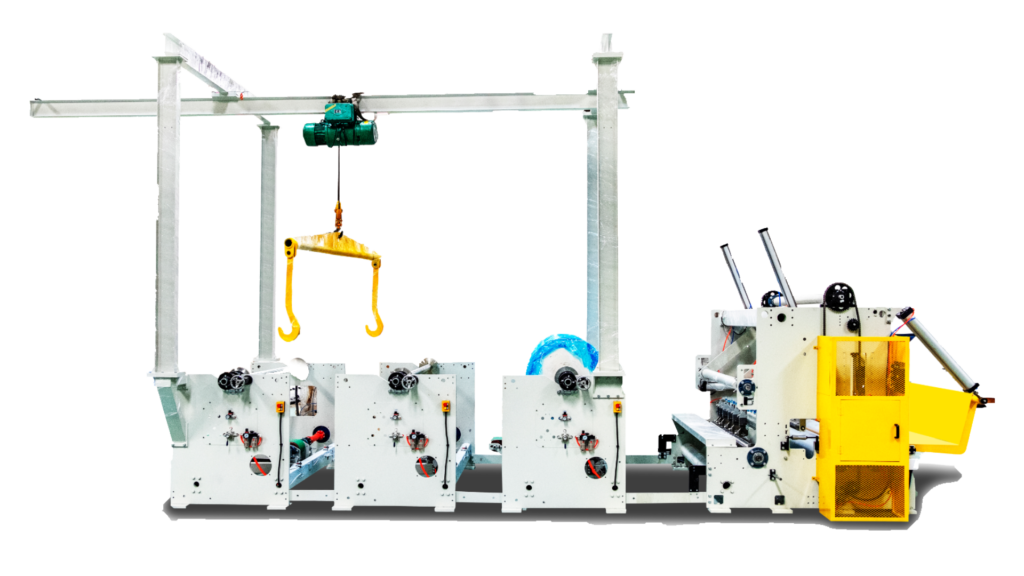

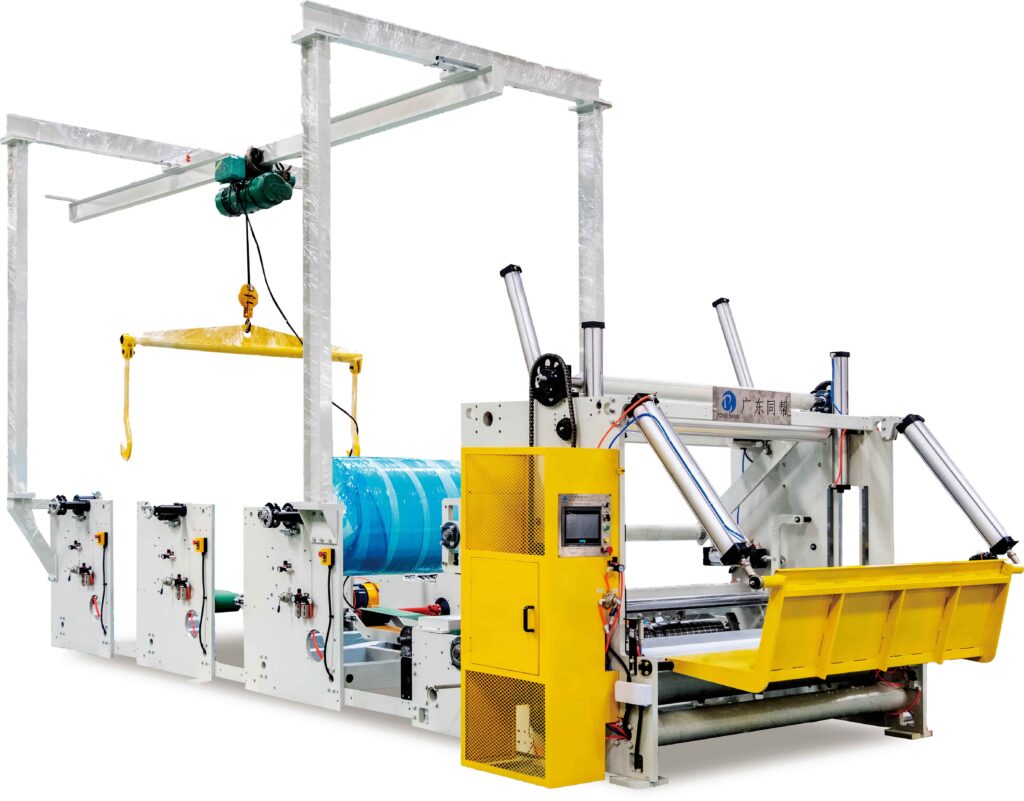

The self-sufficient solution. Features an integrated overhead gantry system for independent roll loading, eliminating the need for external factory cranes.
Minimizing downtime with smart automation and heavy-duty components for non-stop converting.
Siemens S7 PLC with closed-loop load cell feedback for constant web tension.
Flexible cutting modules adaptable to tissue grades and GSM requirements.
Optional automated knife setup for rapid format changes (< 2 mins).
Perfect density and structure for downstream converting efficiency.
Standard efficiency model for versatile production.
| Machine Model | TB-FQC500 (FQ Standard Series) |
| Working Speed | 500 m/min |
| Width of Jumbo Roll | 2950 mm / 3550 mm |
| Dia. of Finished Roll | ≤ Φ1500 mm (Standard) |
| Dia. of Jumbo Roll | Φ 2000 / 2500 mm |
| Slitting Width | Min 80mm - Max to Jumbo roll width |
| Rewinding System | Pneumatic synchronous winding |
| Slitting System | Imported slitting knives |
| Discharge System | Auto roll change + Hydraulic discharge |
| Control System | Motion Control System |
| Unwinder | 1-2 Backstands (Customizable) |
| Motive Power | Individual Inverter Control (Variable) |
| Optional Units |
Calendering: Steel to Steel / Steel to Rubber Lamination: Point to point, decorative embossing Specialty: Double-side cream application |
