Log Saw / Band Saw
TB-JRT100 Orbital Log Saw
Heavy-duty orbital cutting system for JRT/Maxi Rolls. Delivers 100 cuts/min with a mirror-smooth finish and auto-sharpening, handling diameters up to 300mm.
View Details
| Maximum Speed | 600 m/min |
| Alternation Speed | 2-20 logs/min |
| Production Speed | 500 m/min |
| Jumbo Roll Width | 2000-3650 mm (customizable) |
| Jumbo Roll Diameter | ≤ Φ2000 - 3000 mm (customizable) |
| Rewind Type | Non-Stop |
| Parameter Set | HMI |
| Control System | PLC, Inverter, Optical-Electro-Mechanical Integration |
| Tension Control | Encoder, PLC, Inverter |
| Backstand | 1 - 5 ply (independent drive) |
| Log Diameter | Φ100 - 300 MM |
| Tail Length | 5 - 30 mm (adjustable) |
| Speed | 2-20 logs/min |
| Power | 4kw |
| Design Speed | 100 cuts/min |
| Drive System | Servo controlled feeding system |
| Production Speed | 30-80 cuts/min (depending on log density) |
| Feeding Channel | 1 or 2 channels |
| Cutting Tolerance | ±1 mm |
| Log Size | Φ150 - 300 mm |
| Control System | PLC Integrated Control |
Technical experts ready to respond within 24 business hours

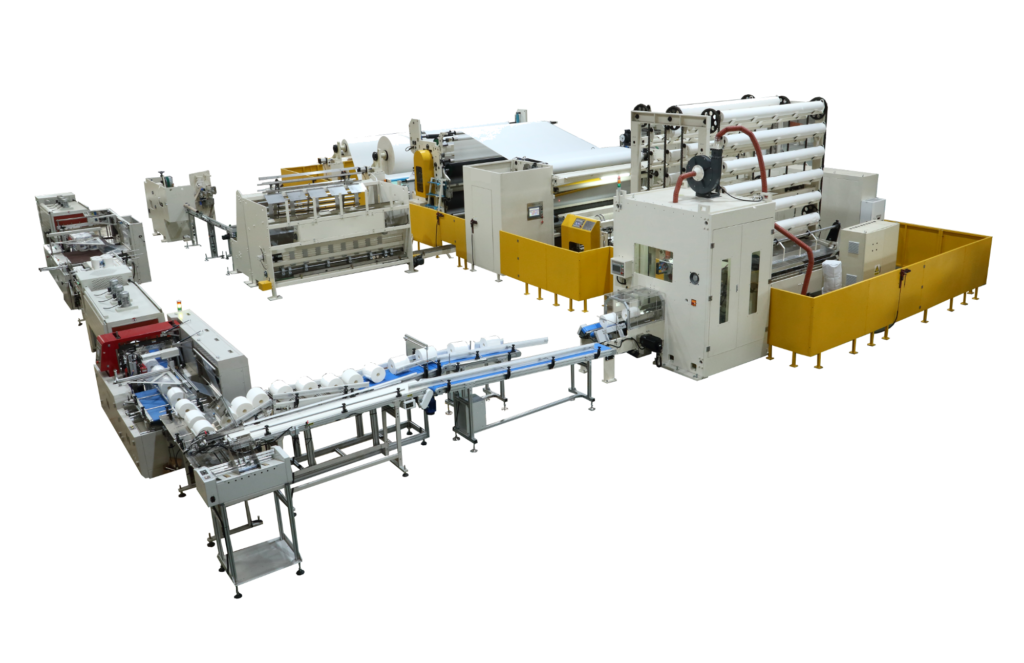

Yes. The TB-JRT500 Non-Stop Maxi Roll Rewinder is engineered for continuous 24/7 industrial performance, achieving a stable production speed of 500 m/min with an alternation rate of 25 logs/min. Unlike entry-level machines, our “Non-Stop” rewinding technology eliminates downtime during core changes, ensuring that your output remains consistent without sacrificing winding quality or perforation precision.
Absolutely. The system handles Jumbo Rolls with a standard width of 2850mm (customizable) and up to 3000mm in diameter. It is fully compatible with 1-3 ply configurations. The adjustable perforation pitch and tension control allow you to switch between high-density toilet paper and absorbent kitchen towels with minimal changeover time, maximizing your plant’s versatility.
We utilize a “High-Intelligence” architecture featuring a Siemens S7 PLC and advanced Motion Control. Independent servo drives (Encoder + Inverter) manage real-time tension at both the unwind and rewind stations. This prevents paper breakage at 500 m/min and guarantees perfectly uniform logs with a diameter range of Φ60–130mm, providing a premium finish that meets international retail standards.
We offer a turnkey solution for international clients. This includes on-site expert installation, commissioning, and intensive operator training. The TB-JRT500 comes with a comprehensive warranty (confirmar si es 12 meses/1 año) and a lifetime guarantee of spare parts availability. Our engineering team provides remote diagnostics to resolve any technical issues with zero latency.
Yes. We understand that every facility is different. The TB-JRT500 is modular; while the standard working width is 2850mm, we can adapt the backstand configuration and the overall footprint to fit your factory layout. We also customize power requirements (standard 380V, 50Hz, 3-Phase) to match your local electrical infrastructure.
