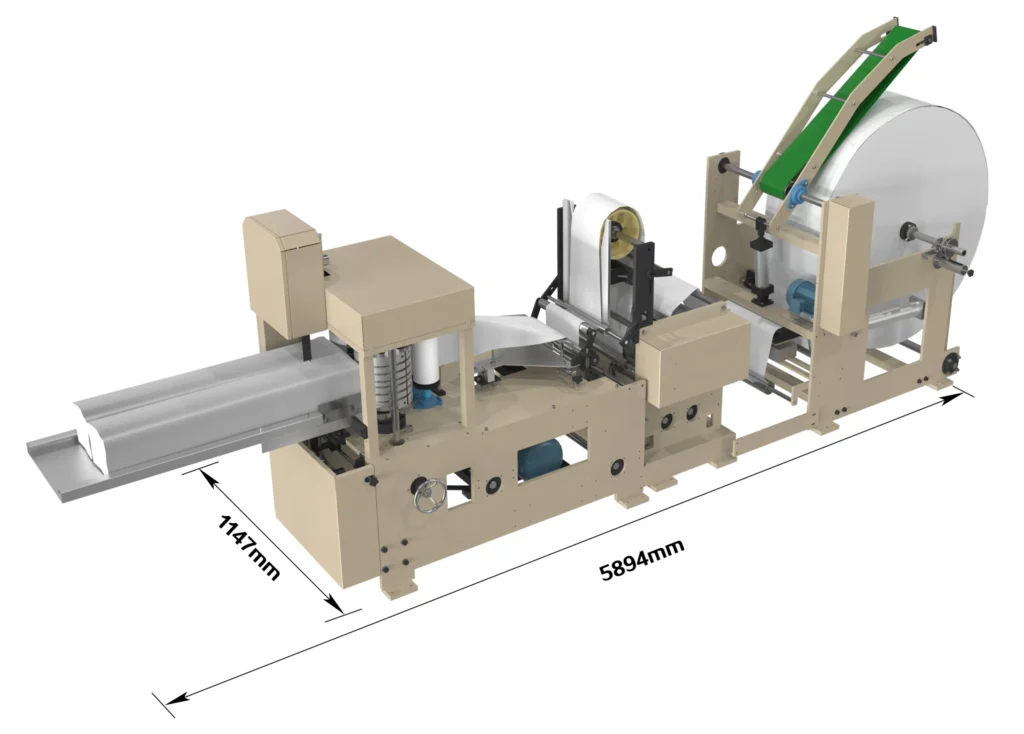

High-efficiency single-head napkin folding machine engineered for versatile and continuous production. Featuring a precision single embossing unit and supporting both 1/4 and 1/8 folding formats, this system delivers stable output speeds of up to 1400 pieces per minute. Ideal for converting jumbo rolls into premium, perfectly folded napkins.
Standard Equipment Parameters
| Machine Model | 1/4 Fold Napkin Machine with Embossing Unit |
| Machine Structure | Single-Head Folding Machine |
| Production Speed | 1000 - 1400 pcs/min |
| Folding Format | 1/4 Fold, 1/8 Fold |
| Unfolded Size Range | 190mm - 420mm |
| Embossing System | Single Embossing Unit |
| Color Printing | None (Base Standard Model) |

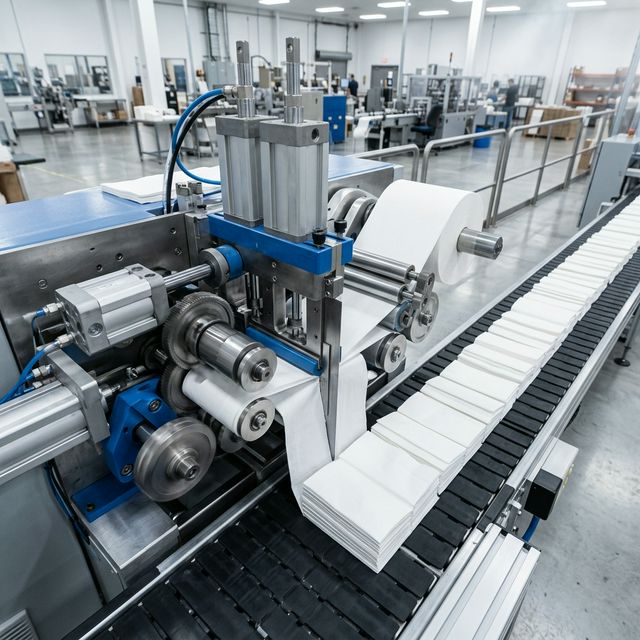

Deliver exceptional quality with every cycle. Our 1/4 fold mechanism ensures perfectly aligned edges and a clean aesthetic. The integrated single embossing unit adds the desired volume and texture, producing napkins that meet the highest standards of the hospitality and retail industries.
Achieve the perfect balance of softness and structural integrity. Featuring heavy-duty steel embossing rollers, this unit bonds the tissue plies securely while pressing an elegant decorative pattern. The pressure can be finely adjusted to accommodate varying raw material specifications and paper weights.
Absolutely. The machine’s steel embossing rollers are fully customizable. Prior to manufacturing, you can provide us with your brand’s logo or preferred decorative pattern, and our engineering team will precision-engrave it onto the cylinders to ensure your napkins reflect your brand identity perfectly.
Minimizing downtime is a priority in our design. Switching between the standard 1/4 fold and the compact 1/8 fold requires only minor mechanical adjustments and selecting the corresponding program on the control panel. An experienced operator can complete the format changeover in approximately 15 to 20 minutes.
The machine is highly adaptable, but for optimal speed and the sharpest embossing definition, we recommend using standard 1-ply or 2-ply tissue jumbo rolls ranging from 14 to 25 gsm. Operating within this range guarantees the 1400 pcs/min output without tearing the web.
While our machines are modular in nature, retrofitting a bare embossing machine with a synchronized flexographic printing unit down the line is complex and cost-prohibitive due to frame and transmission requirements. If color printing is on your near-term roadmap, we highly advise investing initially in our Two-Color 1/4 Fold Machine.
The primary wear-and-tear components are the high-speed cutting blades, grinding wheels, and transmission belts. Tongbang includes a comprehensive spare parts kit with your initial delivery. For future needs, these parts follow international industrial standards and can be easily sourced locally or shipped directly from our global support center.
